ALL-TEST Pro

ALL-TEST PRO 34 EV™ | #50101

ALL-TEST PRO 34 EV™ | #50101

Regular price $7,735.00 USD
Regular price Sale price $7,735.00 USD
Sale Sold out
Shipping calculated at checkout.

ATP Part #50101

DEENERGIZED MOTOR CIRCUIT ANALYSIS™ (MCA) TESTING INSTRUMENT

The ALL-TEST PRO 34 EV™ instrument is the only tool currently on the market for testing permanent magnet motors and generators used in electric & hybrid vehicles.

The static test measures resistance, inductance, impedance, capacitance, and phase angle. The dynamic test analyzes resistance, stator, rotor, and contamination.

FEATURES

  • On-screen step-by-step testing instructions
  • Tests take less than 3 minutes
  • Static & Dynamic testing options
  • Detects faults at the earliest stages before motor failure


ADVANTAGES OF THE ALL-TEST PRO 34 EV™

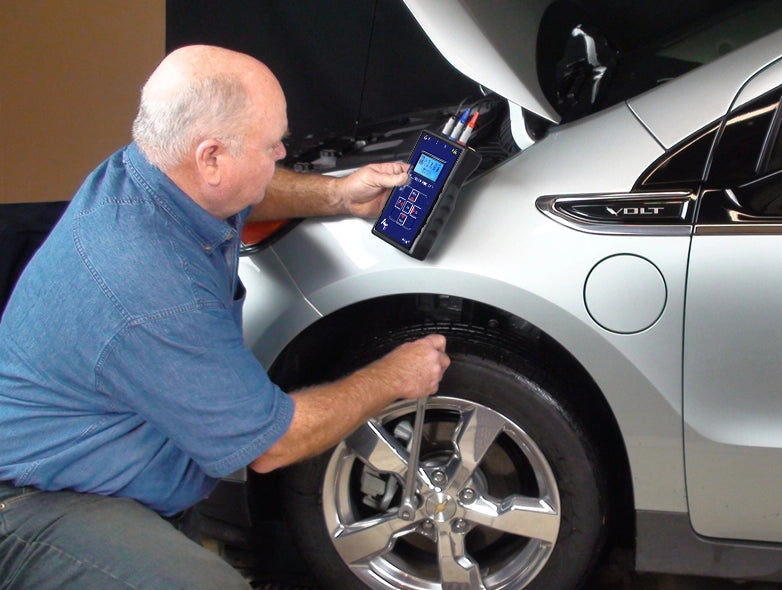

The ALL-TEST PRO 34 EV™ electric and hybrid motor tester is the advanced permanent magnet motor and generator testing solution you need to keep your hybrid or electric vehicle motors running smoothly. Unlike other testing methods, the ALL-TEST PRO 34 EV™ instrument allows technicians to test motors in vehicles without taking the motor apart. The preventative maintenance capabilities this product offers help detect issues in hybrid and electric car motors before motor failure occurs.

With preventative testing, you can eliminate the otherwise inevitable time and money loss that comes with vehicle motor failure. With the ALL-TEST PRO 34 EV™ instruments, you can detect problems with a vehicle’s stator, connections or rotor, all from a user-friendly handheld device. The ALL-TEST PRO 34 EV™ instrument is also extremely portable, so whether you’re in the shop or in the field, you’ll have access to superior motor and insulation testing abilities. The ALL-TEST PRO 34 EV™ can be used to test a wide range of motor health factors.

Complete Motor Health Assessment

The electrical health of all motor components is evaluated including stator windings, rotor, contaminations, ground faults, and connections.

Patented Test Value Static™ (TVS™)

Test Value Static (TVS) is a sum calculated from the 3-phase MCA static test and is used as a reference value for the motor. Common types of faults in the rotor and stator windings will change TVS.

Patented Dynamic Stator and Rotor Signatures™

Used to evaluate the condition of the stator and squirrel-cage rotor in a single test. Perfect for testing new and repaired motors prior to acceptance.
